Shenzhen 3onedata Technology Co.,Ltd.
|

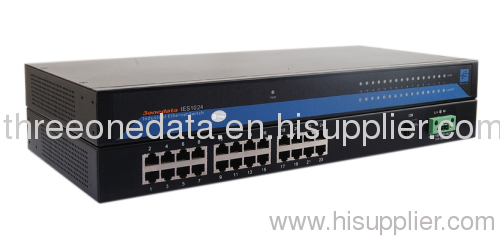

24-port 10/100M Rackmount Industrial Ethernet Switch
| Price: | 100.0~700.0 USD |
| Payment Terms: | T/T,WU |
| Place of Origin: | Guangdong, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
1. 10/100BaseT(X)(RJ45)
2. Support IEEE802.3/802.3u/802.3x
3. Store and Forward switching process type
4. Support auto negotiation speed.
Specification
Interface RJ45 Ports: 10/100BaseT(X) auto connection, Full /Half duplex or force work mode, and support MDI/MDI-X connection
LED Indicators: PWR, Link/ACT, 100M
Technology
Standard:IEEE802.3\IEEE802.3x\IEEE802.3u
Forwarding and Filtrate Rate: 148810pps
transmit type :Store and Forward switching process type
Support 8K MAC Address
Power
Input Voltage: DC100~300V or AC85~264V
Input Current: 0.1A
Overload Current Protection
Connection: 3 bit terminal block
Mechanical
Dimensions (L×W×H): 441.6×44.6×206.9mm
Packaging: IP 30 protection, metal case
Installation: 19-inch rack mount
Environmental
Operating Temperature: -10°C to 60°C
Storage Temperature : -40°C to 85°C
Ambient Relative Humidity: 10% to 95% (non-condensing)
Approvals
EMI:FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2(ESD), Level 4
EN61000-4-3(RS), Level 4
EN61000-4-4(EFT), Level 4
EN61000-4-5 (Surge), Level 4
EN61000-4-6 (CS), Level 4
EN61000-4-8,100A/m
EN61000-4-12
Shock: IEC 60068-2-27
Free Fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Warranty: 5 years
Approvals: FCC,CE, RoHS approvals
