Shenzhen 3onedata Technology Co.,Ltd.
|
unmanaged ethernet switch 8 ports ethernet switch
| Price: | 100.0~200.0 USD |
| Payment Terms: | T/T,WU |
| Place of Origin: | Guangdong, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
1. Advanced Ethernet switch technology
2. IEEE802.3/802.3u/802.3x/802.3d,store and forward
3. Plug-and-play,F/H duplex and auto MDI/MDI-X
Introduction

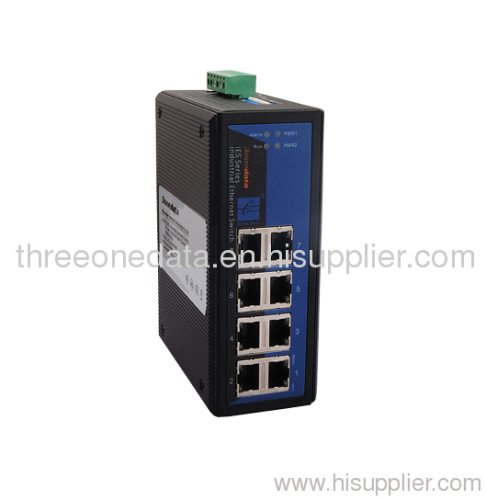

IES308 series are a smart plug-and-play industrial Ethernet switch, which can provide economical solution for your Ethernet. Its dustproof fully sealed structure(pr protective case of IP30 level), over-current, over-voltage and EMC protected redundant double power input as well as built-in intelligent alarm design can help system main tenancy personnel monitor the network operation, which can work reliably in harsh and dangerous environment.
IES308 Supports 8 ports 10/100Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection.
Specification
Interface RJ45 Ports: 10/100BaseT(X) auto connection, F /H duplex or force work mode, and support MDI/MDI-X connection
Alarm output interface:One relay alarm output. Support power, port link and network alarm
Indicator: Power, Port link, abnormity alarm indication, 10M/100M Rate
Technology
Standards: IEEE802.3, IEEE802.3x, IEEE802.3u
Forwarding and Filtrate Rate: 148810pps
Processing type: Store and Forward
System exchange bandwidth: 4.8G
Relay
Max voltage: DC30V
Max power input: 24VA
Power
Input Voltage: 24VDC (12VDC~36VDC)
Overload Current Protection
Support dual power backup
Mechanical
Dimensions: 136mm×52mm×105mm (H×W×D)
Casing: IP30 protection, Metal case
Weight: 800g
Environmental
Operating Temperature: -40 to 75°C
Storage Temperature: -45 to 85 °C
Ambient Relative Humidity: 10% to 95% (non-condensing)
Approvals
EMI:FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2(ESD),
EN61000-4-3(RS),
EN61000-4-4(EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11
Shock: IEC 60068-2-27
Free Fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Warranty: 5 years
Approvals: FCC,CE, RoHS approvals
